Feeder
Sheets pre-stacker provides a continuous feed without a stop
Servo-controlled feeder head, synchronizing with the host speed, replenishes sheets
Sheets gap sensor for self-protection
Overlap regulator adjusts the sheets overlapped length
Side-lay regulator aligns sheets
Powder remover
Electric-heated powder remover improves film-sheet fastness and laminating effect
Laminator
Electromagnetic-heated, chrome laminating roller and hydraulic-pump driven rubber roller
High-precision glue applying roller and glue scraper
Large diameter steel roller(Φ800) and strong hot-wind drying system dry glue instantaneously
Pre-coated film mounted on a quick-change, micro-adjustable air-shaft
Air-shaft ensures precise film release tension and speed
Film roll slitting and perforating mechanisms
Film rewinders for the left film that is cut
Sheeter
Anti-curl assembly de-curls thin sheets after thermal lamination
Steer wheels exert negative force on one side to help with sheeting
Rotatory perforating mechanism prepares the web for subsequent sheeting
High-speed mechanical sheeting system driven by steady pneumatic assembly
Stacker
Corrugated delivery system flattens and delivers sheets
Side joggers and back-stop stack sheets in order
Non-stop automatic stacker with a sheets counter
Others
Film roll hoist
Suitable for both pre-coated film lamination and uncoated film lamination
Feed, overlap and side-lay adjustment, powder removal, laminating, drying, sheeting and stacking are finished in one pass
Optional
Double lamination unit improves laminated film fastness
Embossing system improves sheets exquisiteness to maximize the products value
UV film reinforcement system avoids film peeling and blisters
Chain knife sheeting system facilitates PET and PVC film sheeting
Advanced hot-knife sheeting system, combining hot-knife and the pneumatic sheeting system, features accurate and stable sheeting, no excess film, and high running speed
Code printing system that features a high-precision sprayer and precise printing is suitable for QR code printing
Plastic removal assembly contributes to plastic film recycling and reusing
|

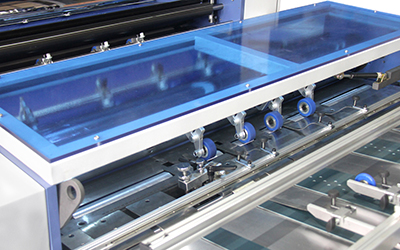

Feeder
|
Overlap regulator
|
||
|
Mechanical side-lay regulator
|
Powder remover
|
||
|
Large diameter laminating roller & electromagnetic heater
|
Glue applying roller & glue scraper
|
||
|
Anti-curl assembly
|
High-speed mechanical sheeter
|
||
|
High-speed stacker
|
|
||
|
Optional
|
|||
|
Double lamination unit
|
Embossing system
|
||
|
UV film reinforcement system
|
Chain knife sheeting system
|
||
|
Advanced hot-knife sheeting system
|
Code printing system
|
||
|
Plastic removal assembly
|
|
||
|
|
GL-1650 |
|
Max Paper Size（mm） |
1650*1850 |
|
Min Paper Size（mm） |
450*450 |
|
Laminating Speed(m/min) |
0-100 |
|
Laminating Speed[with hot-knife](m/min) |
0-80 |
|
Paper Thickness(g/m2) |
100-500 |
|
Gross Power(KW) |
120/60 |
|
Total Weight(kg) |
15500 |
|
Overall Dimensions(mm) |
1400*2950*2900 |
|
Pre-stacker(mm) |
4000 |
