Feeder
Sheets pre-stacker provides a continuous feed without a stop
Servo-controlled feeder head replenishes sheets
Sheets gap sensor for self-protection
The overlap regulator adjusts the sheets overlapped length

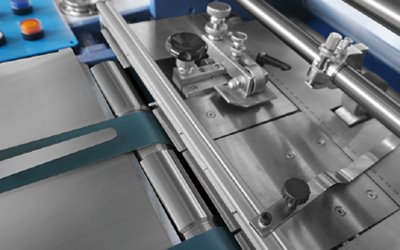

Side-lay regulator aligns sheets
Double Sided Lamination System
Double electromagnetic-heated, chrome laminating roller
Hydraulic pump along with rubber roller exerts big, even and constant laminating pressure
Upper and bottom air-shaft controlled by air compressor and pneumatic clutch respectively
Both air-shafts ensure precise film release tension and speed
Film roll slitting and perforating mechanisms
Laminating pressure up to 10MPa
Sheeter
Adjustable pro-active, anti-curl bar takes the curl out of laminated sheets
Steer wheel exerts negative force on one side to help with sheeting
Stable and efficient pneumatic sheeting system with a photoelectric detection
Stacker
Automatic stacker
Corrugated delivery system flattens and delivers sheets
Side joggers and back-stop stack sheets in order
Others
Compact structure
Feed, overlap adjustment, laminating, sheeting and stacking are finished in one pass
Separated structure convenient for machine maintenance and repairTouch screen and control panel with colourful buttons
|
Feeder head
|
Overlap regulator
|
||
|
Side-lay regulator
|
Electromagnetic-heated laminating unit
|
||
|
Double Sided Lamination System
|
Anti-curl assembly
|
||
|
Pneumatic sheeter
|
Automatic stacker
|
||
|
Model |
SW-820B |
SW-1050B |
SW-1250B |
|
Max Sheet Size (mm) |
820*1050 |
1050*820 |
1250*1050 |
|
Min Sheet Size (mm) |
350*350 |
350*350 |
350*350 |
|
Laminating Speed (m/min) |
0-40 |
0-60 |
0-80 |
|
Sheet Thickness (g/m2) |
100-500 |
100-500 |
100-500 |
|
Gross Power (KW) |
37 |
50/30 |
55/35 |
|
Total Weight (kg) |
3500 |
4400 |
5000 |
|
Overall Dimensions (mm) |
6560*2200*1900 |
5870*2200*1900 |
8150*2200*1900 |
|
Pre-stacker (mm) |
1850 |
1850 |
1850 |
