Feeder
Servo-controlled feeder head (oil-free vacuum pump) replenishes sheets
Sheets gap sensor for self-protection
Laminator
Electromagnetic-heated, chrome laminating roller
Hydraulic system provides big and constant pressure
Film mounted on a quick-change inflatable air-shaft with a scale
Air-shaft ensures precise film release tension and speed
Film roll slitting and perforating mechanisms
Embosser
Electromagnetic-heated, embossing rollers
Electric hydraulic pressure system provides big and constant pressure
Pneumatic sheeter
Adjustable pro-active, anti-curl bar takes the curl out of laminated sheets
Steer wheels exert negative force on one side to help with sheeting
Adjustable sheeting pressure
Stable and efficient pneumatic sheeting system
Sheets collecting
Vibrating jogger table
Others
Touch screen and control panel with colourful buttons
|
Feeder head
|

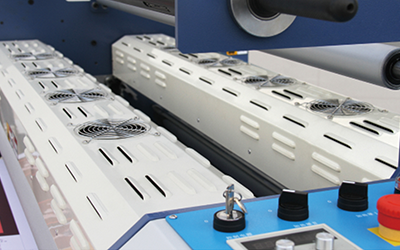

Electromagnetic-heated laminating unit
|
||
|
Embosser
|
Pneumatic Sheeter
|
||
|
Vibrating jogger table
|
|
||
|
Optional
|
|||
|
Automatic stacker
|
|
||
|
|

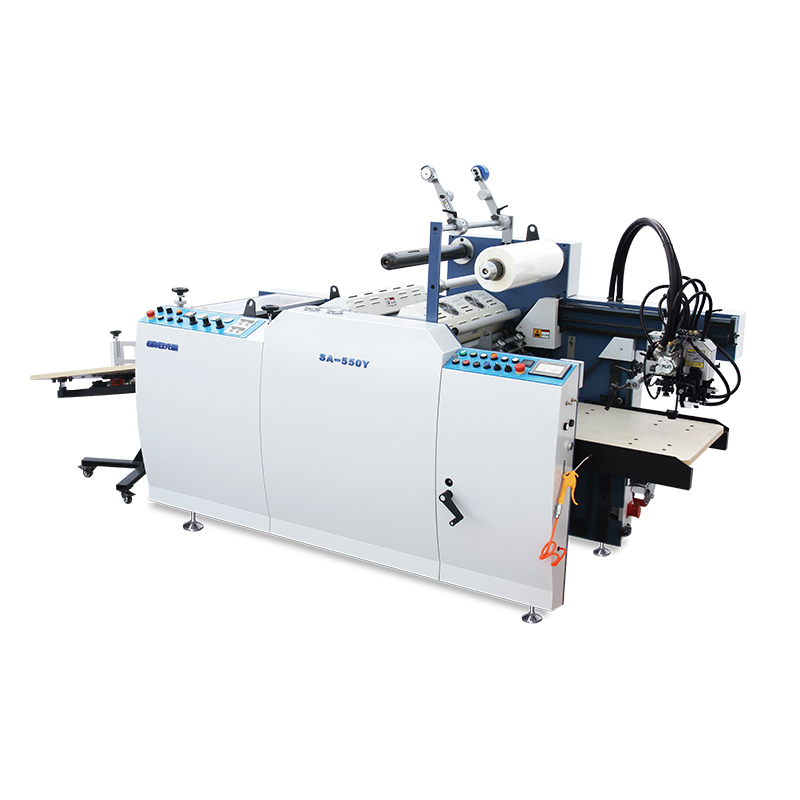

M-550Y |
|
Max Paper Size |
550*780mm |
|
Min Paper Size |
210*300mm |
|
Laminating Speed |
0-30m/min |
|
Paper Thickness |
105-500g/m2 |
|
Gross Power |
16KW |
|
Total Weight |
1630kg |
|
Overall Dimensions |
3500*1250*1600mm |
|
Pre-stacker |
550mm |
