Feeder
Sheets pre-stacker provides a continuous feed without a stop
Servo-controlled feeder head (oil-free vacuum pump) replenishes sheets
Sheets gap sensor for self-protection

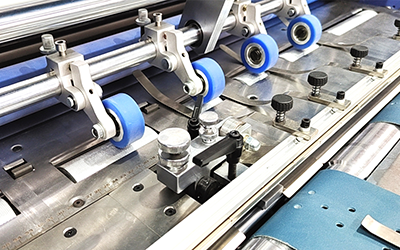

The overlap regulator adjusts the sheets overlapped length
Side-lay regulator aligns sheets
Laminator
Electromagnetic-heated, chrome laminating roller
Hydraulic system provides big and constant pressure
Film mounted on a quick-change inflatable air-shaft with scales
Air-shaft ensures precise film release tension and speed
Film roll slitting and perforating mechanisms
Embosser
Electromagnetic-heated, embossing rollers and hydraulic pressure system
Double-sided embossing system
Sheeter
Adjustable pro-active, anti-curl bar takes the curl out of laminated sheets
Steer wheels exert a negative force on one side to help with sheeting
Stable and efficient pneumatic sheeting system
Stacker
Non-stop stacker with the sheets counter
Others
Touch screen and control panel with colourful buttons
|
Feeder head
|
Overlap regulator
|
||
|
Mechanical side-lay regulator
|
Electromagnetic-heated laminating unit
|
||
|
Embosser
|
Pneumatic sheeting system
|
||
|
Anti-curl device
|
Automatic stacker
|
||
M-560Y
M-760Y
Max Paper Size
560*820mm
760*820mm
Min Paper Size
210*300mm
210*300mm
Laminating Speed
0-60m/min
0-60m/min
Paper Thickness
105-500g/m2
100-500g/m2
Gross Power
33/18KW
20 KW
Total Weight
2600kg
3500kg
Overall Dimensions
5780*1350*1600mm
5780*1550*1600mm
Pre-stacker
1850mm
